Model 5CJ-010
Model 5CK-010
(5 Amperes)
$59.75 each@Qty100

SummaryGeneral Description
Summary
Implementation Notes
Pricing





General Description

The Model 5CJ-010 and Model 5CK-010 are On/Off temperature controllers that use thermocouple sensors. Output is through an SPDT relay rated at 5 amperes @ 120 VAC.

The 5CJ models use Type J thermocouples, while the 5CK models use the Type K thermocouples. The type K thermocouple senses higher temperatures (0° to 1250°C) than the type J (0° to 750°C).

These units have 3°C switching hysteresis, nominal.

Enlarged Photo.

(Units which are similar but which use Proportional control through a Triac are the models 5CJ-020 and 5CK-020.)


In summary, here are the features:
  • Control mode: ON/OFF (for a similar unit with proportional control see the 5CJ-020 and 5CK-020 models).
    • 3°C switching hysteresis, nominal.
  • Temperature ranges:
    • 0° to 750°C (32° to 1382°F) for 5CJ Models.
    • 0° to 1250°C (32° to 2282°F) for 5CK Models.
  • Set point stability:
    • ± 3°C with ambient over 0° to 55°C (0.05°C/°C)
    • 0.4°C with line voltage 120 ± 10% VAC (0.017°C/volt)
  • Sensors:
    • Type J thermocouple for 5CJ Models.
    • Type K thermocouple for 5CK Models.
  • Thermocouple lead length: Accuracy will remain within specifications for thermocouple lead length up to or equivilant to 150 ohms resistance.
  • Input power: 120 VAC ± 10%, 50/60 HZ.
  • Output: SPDT relay rated at 5A @ 120 VAC.
  • Power dissipation: 1 watt, nominal.
  • Ambient temperature limits:
    • Operating: 0° to 55°C (32° to 131°F).
    • Storage: -40° to 70°C (-40° to 158°F).
  • Mounting: Plastic snap-track 2.9"x4" (72.50MMx101.60MM).
  • Terminations:
    • Screwdriverless barrier strip requires no tools.
    • Wire range of #18 to #24 AWG.
  • Weight: 5.5 oz (160 grams) maximum.

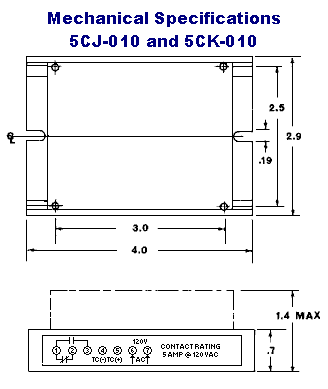

  • Dimensions: 4.0"x2.9"x1.4" max. (101.60MMx72.50MMx35.56MM) (see the mechanical specifications drawing in the implementation notes below).

Implementation Notes

TYPICAL APPLICATIONS

Figure 1: the 5CJ-010 ON/OFF control is shown with the 5C7-020 proportional control providing ON/OFF control of the fan and proportional control of the heater.
Figure 2: Wiring diagram for heater loads that are greater than the device rating.

Pricing

MODEL 5CJ-010 and Model 5CK-010
   Quantity 01 price: $71.00 each
   Quantity 10 price: $66.75 each
   Lower prices are available at higher volume.
   Quantity 100 price:  $59.75 each
   Lower prices are available at higher volume.

    • General Notes on Pricing
      • Controllers Only: Prices shown are for the "controllers only"
      • Currency: All prices are $US.
